More cooling in less rack space.

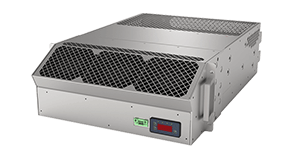

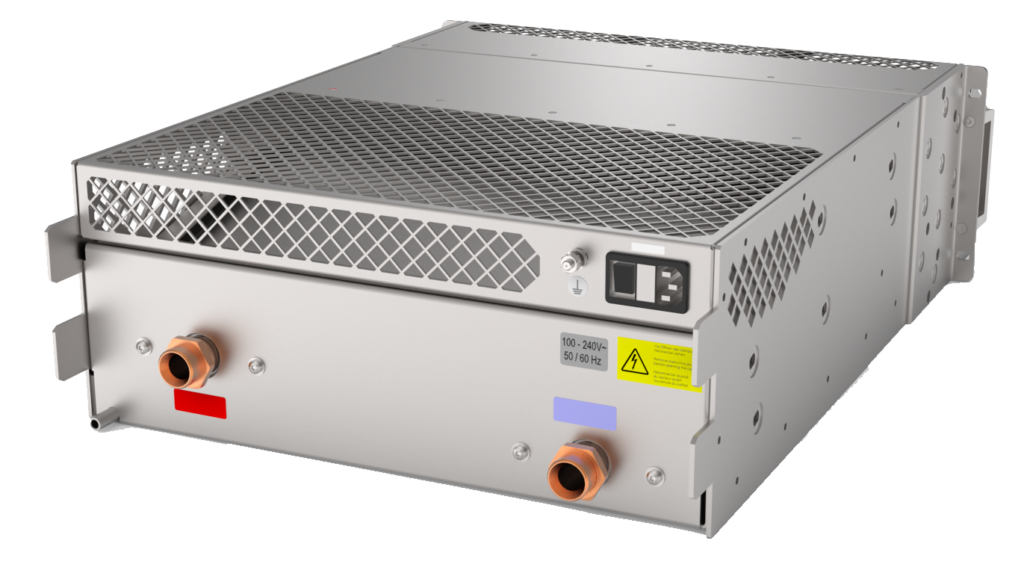

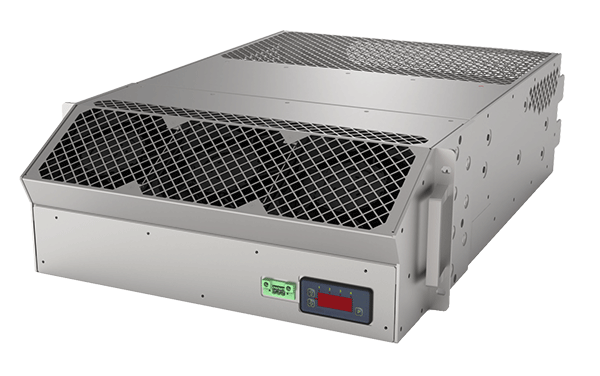

nVent SCHROFF has introduced the new LHX 4U In-Rack Cooler, Air/Liquid Heat Exchanger 7.5 kW.

This new model gives engineers and system designers a practical option between earlier 5 kW and 10 kW versions. The biggest benefit is simple: you get more cooling in less space.

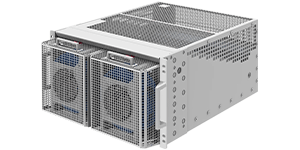

Earlier 5 kW and 10 kW LHX+ units use a 6U cooler and require a separate 2U controller box, for a total of 8U. The new 7.5 kW model delivers cooling in a compact 4U design, cutting the overall height in half and freeing up valuable rack space for other equipment.

Key product highlights

• Cooling capacity: 7.5 kW
• Maximum airflow: 1,337.5 m³/h, or 787 CFM
• Power consumption: 1,000 W
• Height: 4U, or 177 mm
• Width: 483 mm
• Depth: 695 mm
• Cabinet fit: installs in 19-inch cabinets with 800 mm depth

Cooling Capacity That Fits the Application

The nVent SCHROFF LHX 4U In-Rack Cooler 7.5 kW fills the gap between earlier 5 kW and 10 kW LHX+ options. It gives system designers a way to match cooling capacity more closely to the application, while reducing the rack space required for the cooling solution.

Selmark can help you review the LHX options, compare standard and rugged versions, and determine the best fit for your cabinet, thermal load, and project requirements. Contact us for product information, pricing, or rep-only ordering details.
